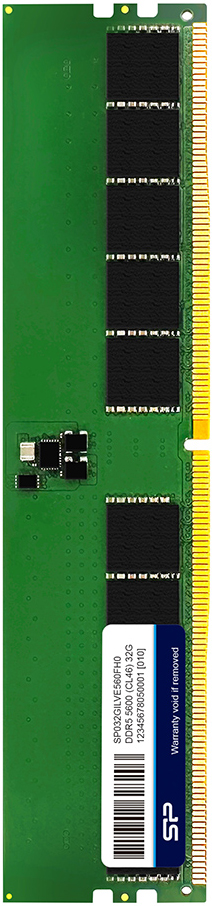

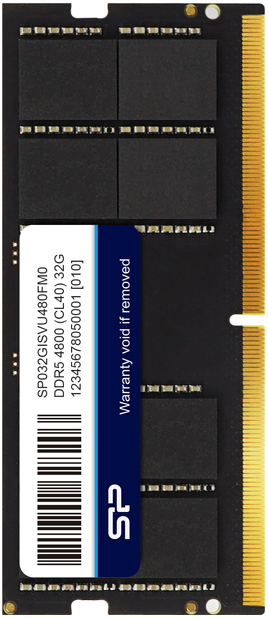

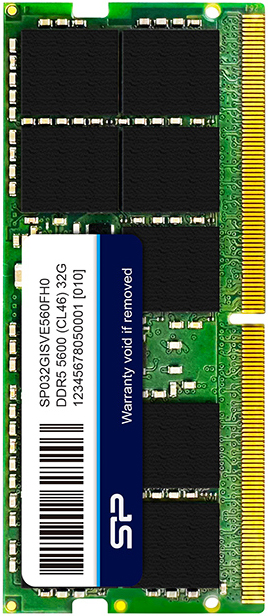

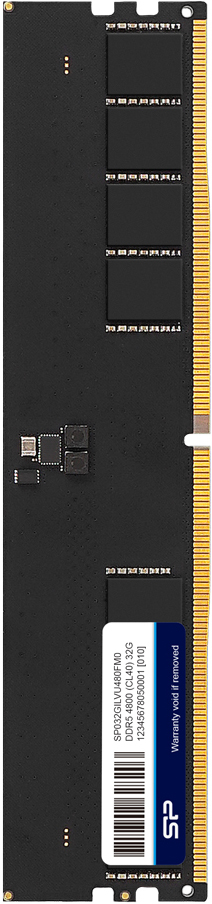

Model | SODIMM | UDIMM | ECC SODIMM | ECC UDIMM |
---|---|---|---|---|
DRAM Type | DDR5 | DDR5 | DDR5 | DDR5 |
Capacity | 16GB, 32GB | 16GB, 32GB | 16GB, 32GB | 16GB, 32GB |
Data Rate | 4800MT/s | 4800MT/s | 4800MT/s / 5600MT/s | 4800MT/s 5600MT/s |
CAS Latency | CL40 | CL40 | CL40 | CL40 |
Voltage | 1.1 V | 1.1 V | 1.1 V | 1.1 V |
Pin Count | 288pin | 288 pin | 288 pin | 288 pin |
Data Width | 64 Bits | 64 Bits | 64 Bits | 64 Bits |
PCB Height | 1.23" (31.40mm) | 1.23" (31.40 mm) | 1.23" (31.40mm) | 1.23" (31.40mm) |
Temperature | ||||
Operating -20°C ~95°C: Standard | SP***GISVU****H0 | SP***GILVU****H0 | SP***GISVE****H0 | SP***GILVE****H0 |
![]() |
||||

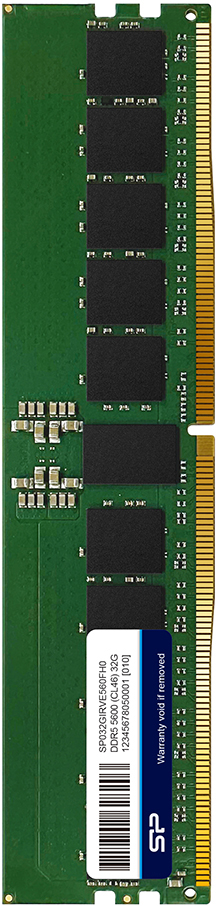

Model | RDIMM | |||
---|---|---|---|---|
DRAM Type | DDR5 | |||
Capacity | 16GB, 32GB | |||
Data Rate | 4800MT/s, 5600MT/s | |||
CAS Latency | CL40 / CL46 | |||
Voltage | 1.1 V | |||
Pin Count | 288pin | |||
Data Width | 80Bits | |||
PCB Height | 1.23" (31.40mm) | |||
Temperature | ||||
Operating -20°C ~95°C: Standard | SP***GIRVE****H0 |
