Industrial Flash & DRAM

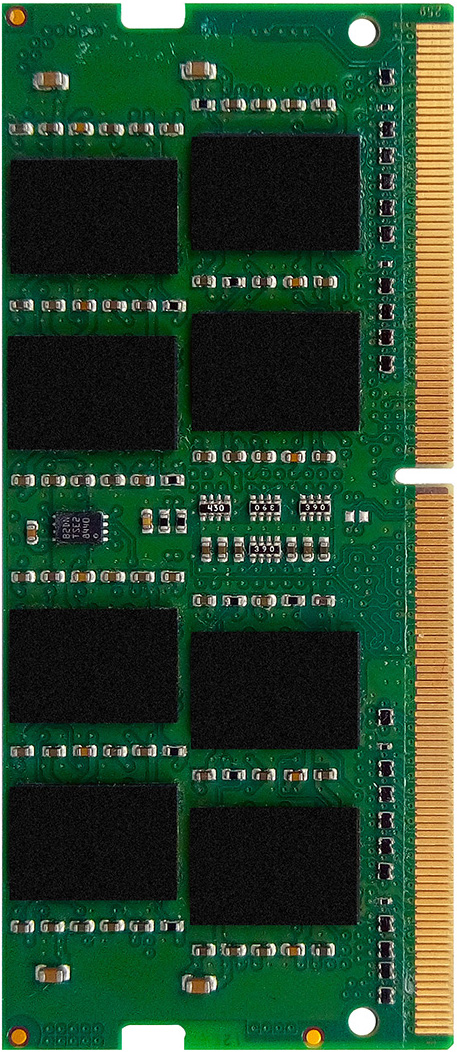

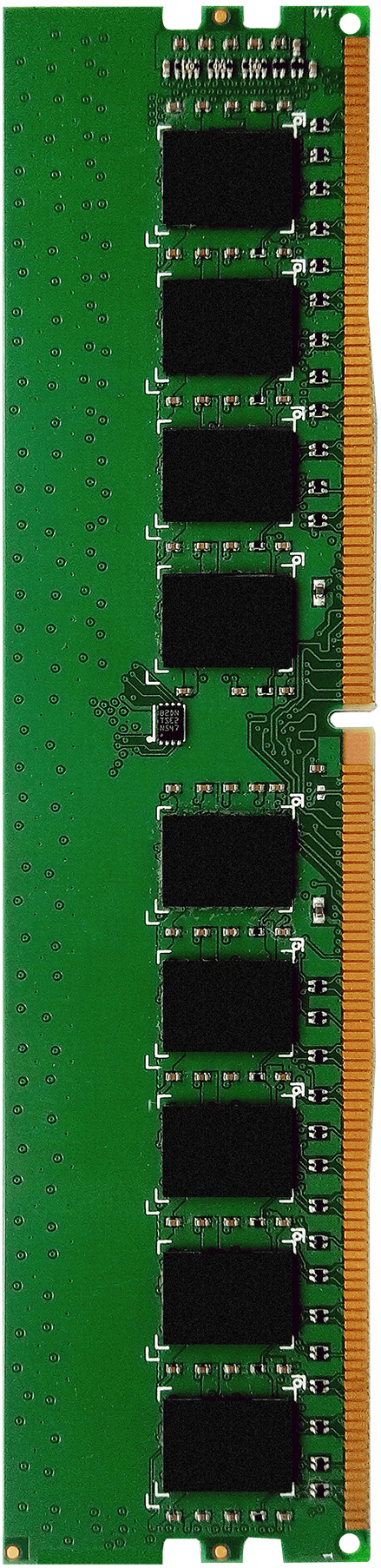

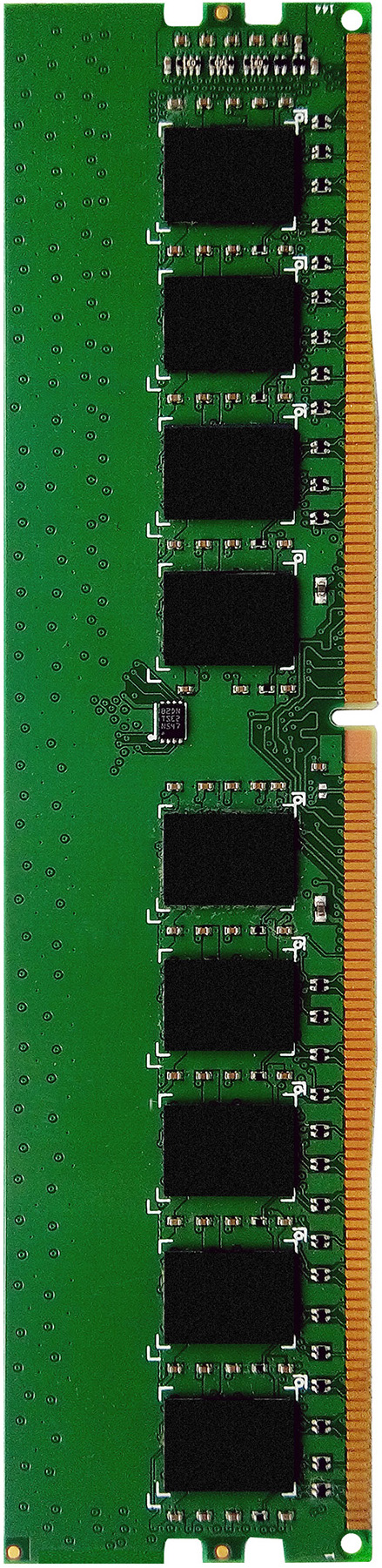

Model	SO-DIMM	SO-DIMM w/ECC	U-DIMM	U-DIMM w/ECC

Flash Type	DDR4	DDR4	DDR4	DDR4
Capacity	2GB /4GB / 8GB / 16GB	4GB / 8GB / 16GB	4GB / 8GB / 16GB	4GB / 8GB / 16GB
Grade	0ºC~+70ºC/-40ºC~+85ºC	0ºC~+70ºC/-40ºC~+85ºC	0ºC~+70ºC/-40ºC~+85ºC	0ºC~+70ºC/-40ºC~+85ºC
IC Data Rate	DDR4-2133 / DDR4-2400 / DDR4-2666	DDR4-2133 / DDR4-2400	DDR4-2133 / DDR4-2400 / DDR4-2666	DDR4-2133 / DDR4-2400 / DDR4-2666
Bandwidth	64 bits	72 bits	64 bits	72 bits
DIMM Data Rate	2133MHz / 2400MHz / 2666MHz	2133MHz / 2400MHz / 2666MHz	2133MHz / 2400MHz / 2666MHz	2133MHz / 2400MHz / 2666MHz
Pin Number	260 Pins	260 Pins	288 Pins	288 Pins
Height	30 mm + 0.15 mm	30 mm + 0.15 mm	31~34 mm + 0.15 mm	31~34 mm + 0.15 mm
Voltage	1.2V	1.2V	1.2V	1.2V

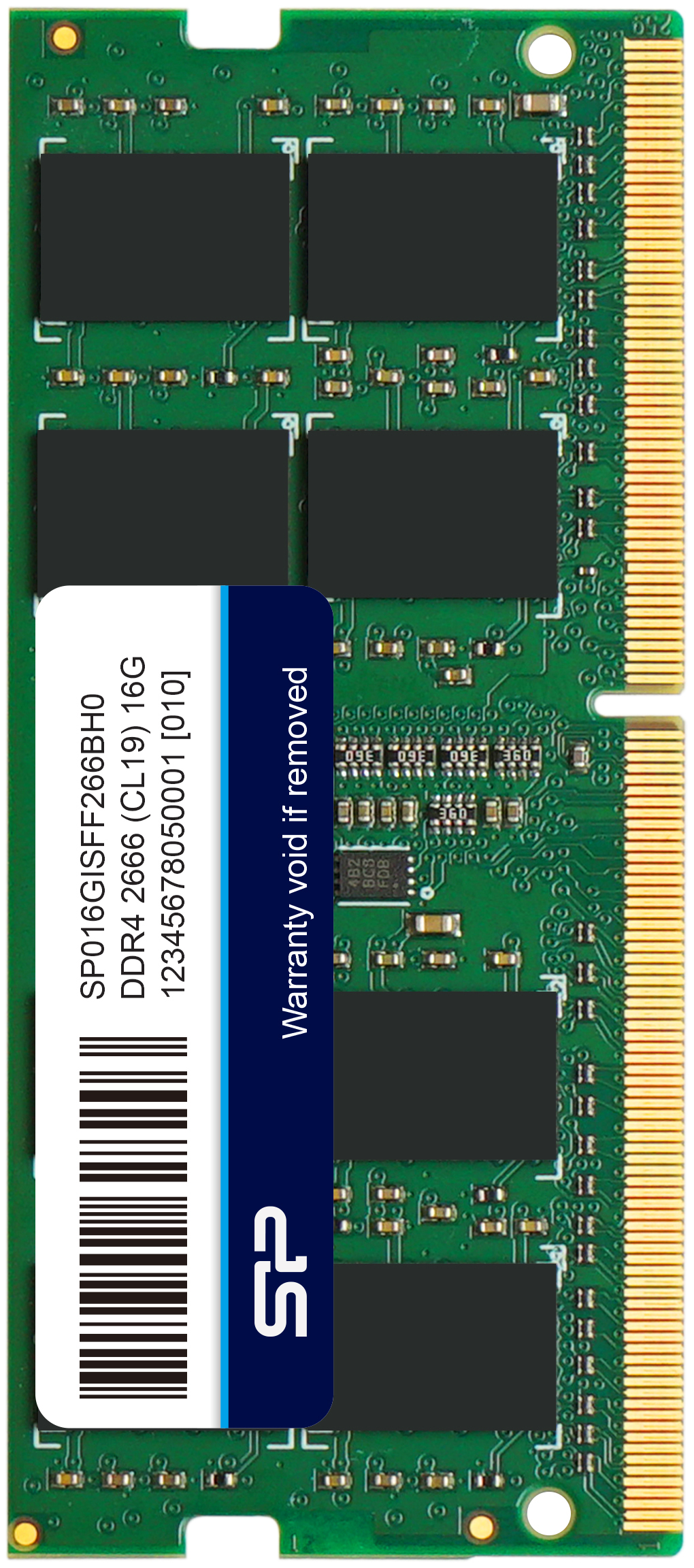

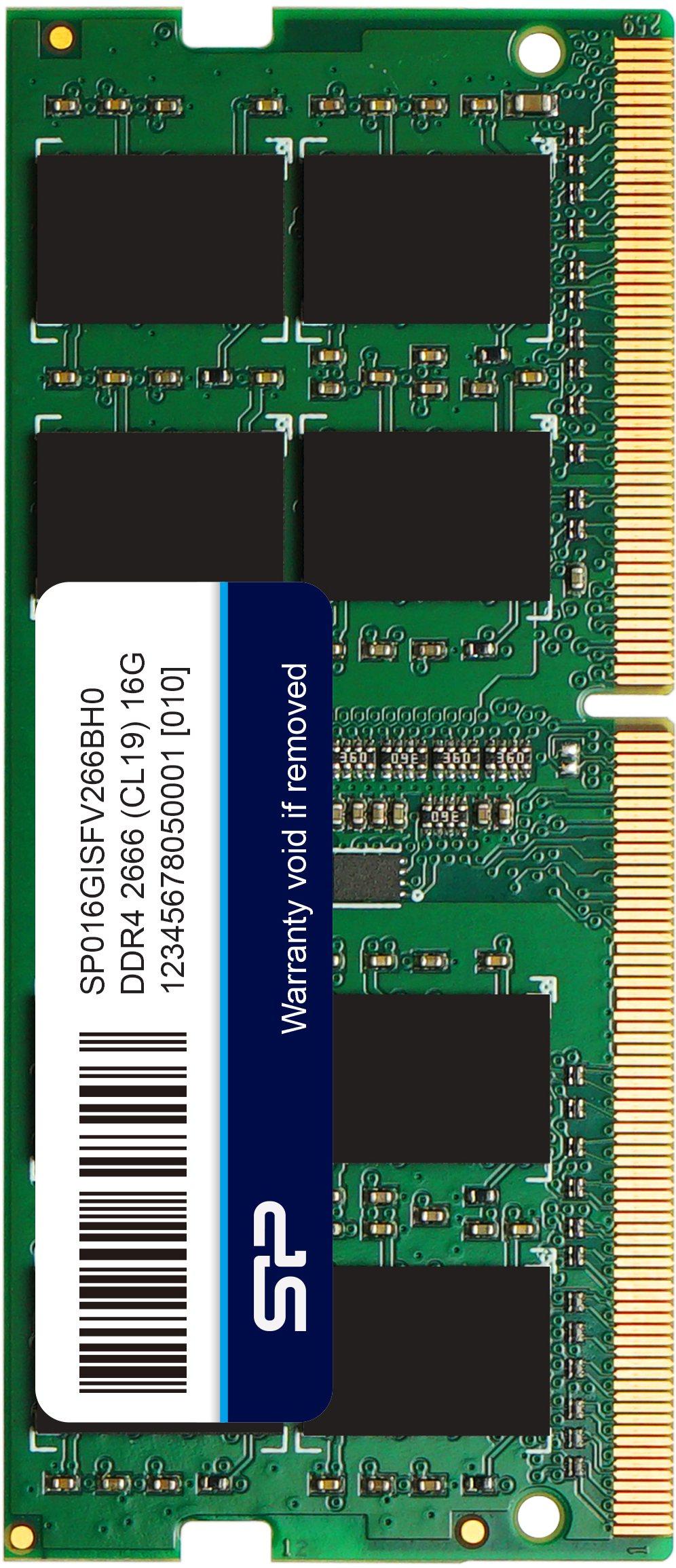

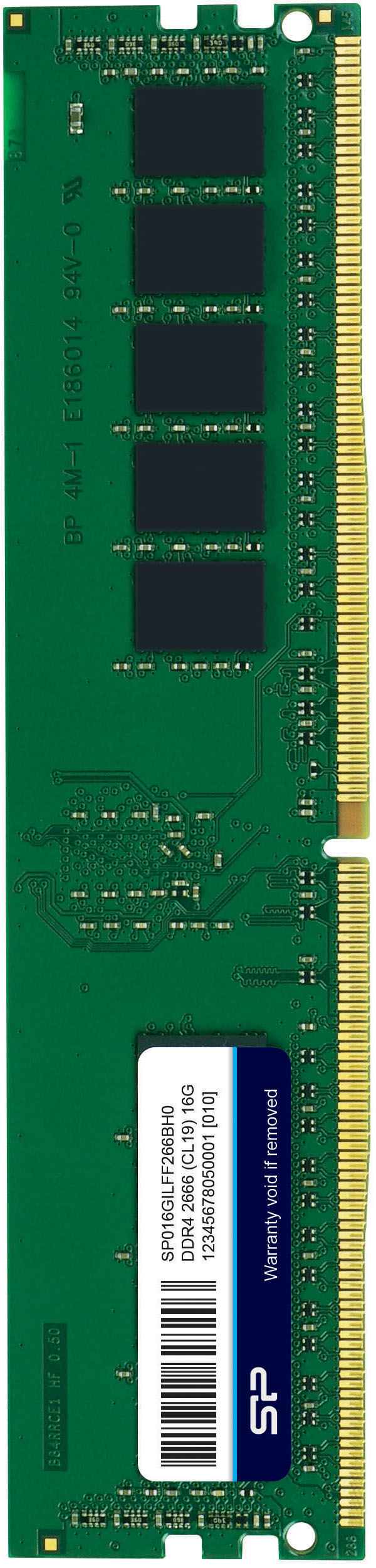

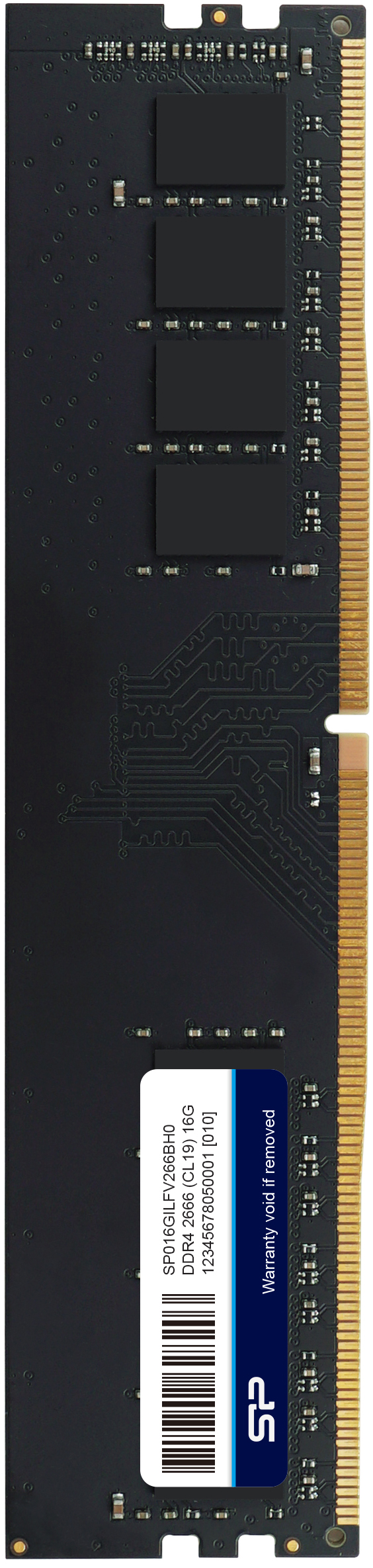

Model	SODIMM	UDIMM	ECC SODIMM	ECC UDIMM

DRAM Type	DDR4	DDR4	DDR4	DDR4
Capacity	2GB~32GB	2GB~32GB	4GB~32GB	4GB~32GB
Data Rate	2666 / 3200 MHz	2666 / 3200 MHz	3200 MHz	3200 MHz
CAS Latency	CL17 / CL19 / CL22	CL17 / CL19 / CL22	CL17 / CL19 / CL22	CL17 / CL19 / CL22
Voltage	1.2 V	1.2 V	1.2 V	1.2 V
Pin Count	260 pin	288 pin	260 pin	288 pin
Data Width	64 Bits	64 Bits	72 Bits	72 Bits
PCB Height	1.18" (30.13 mm)	1.23" (31.40 mm)	1.18" (30.13 mm)	1.23" (31.40 mm)
Temperature
Operating 0°C ～ 85C: Standard	SP*GISFU**H0	SP*GILFU**H0	SP*GISFE**H0	SP*GILFE**H0
Operating -40°C ～ 85°C: Wide	SP*GISFV**H0	SP*GILFV**H0	SP*GISFF**H0	SP*GILFF**H0

Industrial DDR4 DRAM MODULES
